Brands >> Mitutoyo >>Digimatic Calipers

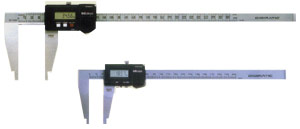

Digimatic Calipers


FEATURES

• The nib style jaws have round measuring faces for accurate to measurements.
• The 300 mm and 12"/300mm range models are provided with preset function (offset value setting), allowing direct readout of ID measurements from the LCD.
• With SRC data output.
• No depth bar.
• Single SR44 battery operation with approx. 2 years battery life under normal working conditions.

DIGIMATIC CALIPERS (with 'nib' style Jaws

Range Resolution Accuracy Remarks
0 - 200mm 0.01mm +-0.02mm ID range : 10 - 200mm, ABS Digimatic Caliper
0 - 300 mm 0.01mm +-0.03 mm ID range : 10 - 300mm, with preset function
0 - 450 mm 0.01mm +-0.05 mm ID range : 20 - 470mm
0 - 600 mm 0.01mm +-0.05 mm ID range : 20 - 620mm
0 - 1000 mm 0.01mm +-0.07 mm ID range : 20 - 1020mm
0 - 8"/200 mm .005/0.01mm +-001 mm ID range : 4-8"/1-.16 - 200mm, ABS Digimatic Caliper
0 - 12"/300 mm .005/0.01mm +-0015 mm ID range : 4 - 12"/10.16 - 300mm, with preset function
0 - 18"/450 mm .005/0.01mm +-002 mm ID range : .5 - 18.5"/12.7 - 462mm
0 - 24"/600 mm .005/0.01mm +-002 mm ID range : .5 - 24.5"/12.7 - 612mm
0 - 40"/1000 mm .005/0.01mm +-003 mm ID range : 1 - 41"/25.4 - 1025 mm
